When investing in a water treatment system, protecting equipment from damage is a top priority. One small but critical component that ensures smooth operation is the resin trap filter. Whether you are using ion exchange, reverse osmosis, or other industrial water treatment systems, resin trap filters act as a safeguard against costly failures.
In this article, we answer the most common FAQs about resin trap filters to help you make an informed decision before purchasing.

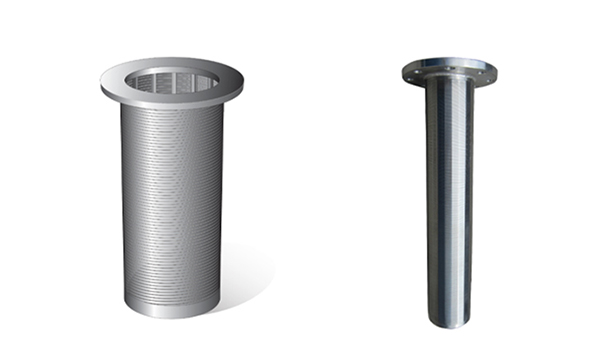

A: A resin trap filter is a protective device installed on the outlet of ion exchange vessels, softeners, or filters. Its purpose is to prevent ion exchange resins or filter media from escaping into downstream piping, pumps, or membranes. Typically made from stainless steel wedge wire screens or perforated materials, resin traps are designed with slots or holes that are smaller than the resin beads, ensuring reliable capture.
A: Losing resin beads into the water system can cause:
▪ Pump and valve damage due to clogging.
▪ Reduced the efficiency of downstream equipment like RO membranes.
▪ Unplanned downtime and repair costs.
A resin trap filter prevents these problems, extending the service life of the system and lowering maintenance costs.
Related Reading: What Is The Purpose of A Resin Trap?
A: Resin trap filters are widely used in:
▪ Ion exchange softeners (cation and anion systems).
▪ Demineralizers in power plants.
▪ Desalination systems with RO membranes.
▪ Industrial water treatment plants across the food, beverage, chemical, and pharmaceutical industries.
A: The most common materials include:
▪ Stainless Steel (304/316L): corrosion-resistant, durable, ideal for harsh environments.
▪ PVC or PP: lightweight and cost-effective, mainly for non-corrosive water.
▪ Wedge Wire Design: provides strength, high flow rate, and precise slot openings (as fine as 0.2 mm).
A: When selecting a resin trap filter, consider:
▪ Slot Size & Opening: Must be smaller than the resin bead size to prevent leakage.
▪ Flow Rate: Ensure sufficient capacity for system demands.
▪ Pressure Rating: Match with vessel operating conditions.
▪ Material Selection: Stainless steel for durability, plastics for budget-friendly applications.
▪ Customization Options: Some manufacturers offer tailored designs for vessel size, flow direction, and installation type.
A:
▪ Regular Inspections: Check for cracks, blockages, or wear.
▪ Backwashing or Cleaning: Remove trapped particles to maintain flow.
▪ Replacement Schedule: Replace when slots widen or structural damage is visible.
Proper maintenance ensures long service life and protects expensive downstream equipment.
A:
▪ Prevent resin leakage into process water.
▪ Avoid equipment failure in pumps, valves, and membranes.
▪ Reduce downtime and unexpected repair costs.
▪ Improve the overall efficiency of the water treatment system.
A resin trap filter may be small, but its role in protecting water treatment systems is vital. By preventing resin loss and equipment damage, it ensures efficiency, safety, and cost savings.
When buying a resin trap filter, focus on slot size, material, pressure rating, and application needs. Choosing the right filter from a reliable manufacturer will keep your system running smoothly and extend its lifespan.
YUBO is a reliable manufacturer and supplier of wedge wire resin trap filters. We can provide customized solutions tailored to your system.
