The screw press screen solid-liquid separatorstands out for its powerful dewatering capabilities. It is an efficient, cost-effective solution for managing high-moisture waste streams, like sludge, food byproducts, and organic residues. By compressing liquids out of semi-solid materials, screw presses help businesses reduce waste volume, lower handling costs, and advance sustainability efforts.

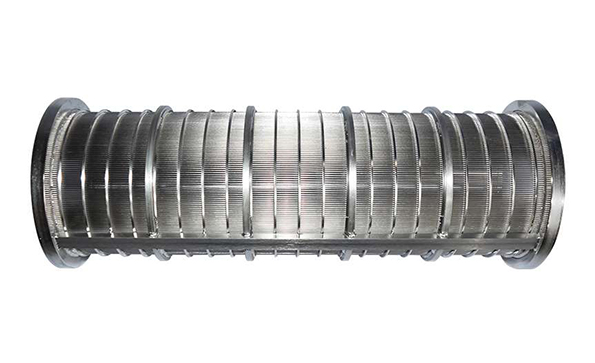

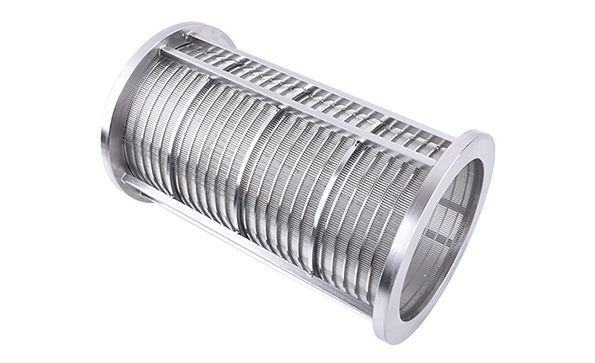

At its core, a dewatering screw press combines a rotating screw and a perforated or wedge-wire screen (sometimes vee-wire) within a cylindrical housing. As the material moves along the screw's length, the narrowing pitch, or a discharge cone, increases pressure, squeezing out the liquid. The expelled fluid flows through the screen, while the dry solids, known as the press cake, are discharged at the end.
Such systems often operate continuously and with self-cleaning screens, significantly minimizing clogging and enabling long unattended runs.
1. High Efficiency with Minimal Footprint
Screw presses deliver consistent solid-liquid separation with lower energy demands and compact designs compared to belt filter presses or centrifuges.
2. Robust Screen Performance
Wedge-wire or fine-aperture screens resist clogging better than traditional filter media, allowing for intermittent wash-cleaning that occupies just 2–4% of operational time.
3. Versatile Across Industries
• Municipal & Industrial Wastewater: Dewatering sludge, reducing moisture content from over 90% to around 20–40%, which simplifies handling and disposal.
• Agricultural & Manure Processing: Efficiently compresses livestock manure, separating solids for composting or fertilizer and recovering liquid effluent.
• Food & Beverage: Separates solids from sugar beet pulp, spent grains, orange peels, and other food waste, often converting byproducts into feed or further processing materials.
• Plastic Recycling: Dewaters plastic films, improving downstream extrusion and pelletizing efficiency while lowering energy needs.
• Chemical & Pulp Industries: Used in handling viscous or fibrous materials, including cellulose pulp, synthetic resins, and other chemicals.
Optimising Dewatering Performance
Key operational factors influencing performance include:
• Initial feed water content: Higher moisture enables better water removal; ideal targets often hover around 40–60%.
• Back pressure or discharge restriction: Helps compact solids more tightly for greater dryness.
• Screw rotation speed: Must balance throughput and compression; excessive speed may reduce water removal.
• Particle size and fiber structure: Larger or fibrous materials form better press cakes; very fine materials may require added structural support.
A 2023 study using response surface methods found that initial water content > back pressure > rotation speed in important for dewatering effectiveness. Compact screw press tests also demonstrated a ~7.7% increase in dry matter for wood shavings and organic waste, underscoring their potential as decentralized solutions.
