Fruit Juice Filtration System Upgrade for Improved Product Clarity
Project Overview
A fruit juice manufacturer located in Guangdong, China, upgraded its filtration process to improve product quality and production efficiency.
The existing filtration system struggled with frequent blockage and unstable filtration performance during juice clarification. YUBO supplied a multi-bag filtration solution designed to improve solid removal, reduce maintenance requirements, and provide more consistent juice quality.
Customer Challenge
Before the upgrade, the factory mainly relied on a traditional plate-and-frame filtration system during juice production.
However, several operational issues affected daily production:
• Fruit pulp residues and cellulose fibers accumulated quickly on the filter cloth.
• Frequent clogging interrupted the filtration process.
• Operators needed to spend considerable time on manual disassembly and cleaning.
• Filtered juice occasionally showed visible turbidity, affecting final product appearance and stability.
The factory required a more efficient filtration solution that could handle continuous juice clarification with easier maintenance.
YUBO Filtration Solution

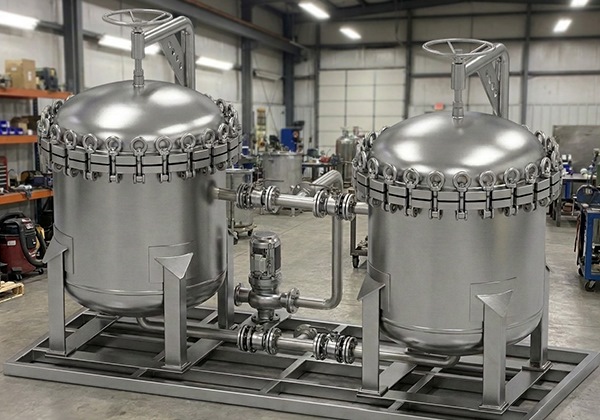

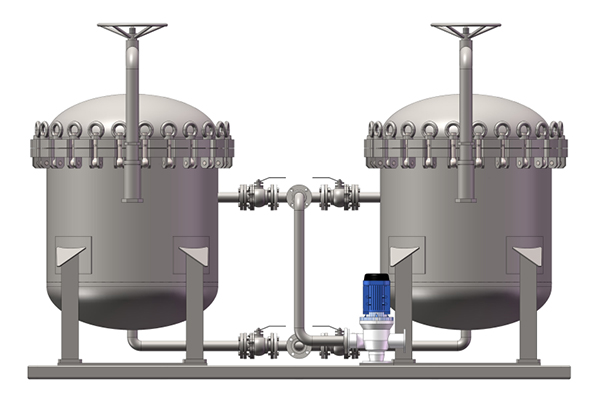

To improve the clarification process, the factory introduced a YUBO D12 multi-bag filter system (Model: YDS-D12).
The equipment was applied during the juice clarification stage to remove:
• Fruit pulp particles
• Yeast cells
• Suspended impurities
The 12-bag parallel design provided:
• Larger filtration area
• More stable flow performance
• Higher processing capacity compared with the previous system
The multi-layer filtration media inside the bags helped capture fine particles while maintaining efficient juice flow during production.
Equipment Supplied
• Filtration Equipment:
YUBO D12 Bag Filter System
• Model:
YDS-D12
• Configuration:
12-bag filtration design
• Application:
Fruit juice clarification and solid-liquid separation
• Industry:
Project Results
After the filtration system upgrade, the production line achieved significant improvements:
1. Improved Filtration Efficiency
The upgraded system increased filtration efficiency by approximately 40%, allowing the juice clarification process to operate more smoothly.
2. Reduced Maintenance Frequency
The previous system required cleaning every day or every other day.
After installation of the new bag filter system, maintenance intervals were extended to approximately once per week, reducing manual labor requirements.
3. Improved Juice Quality
The filtered juice achieved better clarity control, with turbidity maintained within the target range of:
4. NTU < 1
helping improve final product appearance and consistency.
Why Choose YUBO
YUBO provides customized industrial filtration equipment for food processing and other industries.
With experience in liquid filtration applications, YUBO supports customers with:
• Cartridge filtration systems
• Customized filtration equipment
Our solutions are designed according to different liquid characteristics, production requirements and filtration challenges.
