Project Overview
A chemical manufacturer in North America producing coating intermediates faced production limitations caused by an inefficient filtration process.
The existing plate and frame filter press was unable to maintain stable operation when handling high-viscosity materials containing solid particles. Frequent shutdowns for filter cleaning affected production efficiency and increased operating costs.
To improve filtration reliability, the customer upgraded its filtration system with a YUBO automatic self-cleaning filter designed for continuous chemical processing applications.
Customer Challenge
The customer's coating intermediate production process required solid-liquid separation of materials with:
• High viscosity up to 3,000 mPa·s
• Approximately 5% hard solid particles
The original plate and frame filter press created several operational challenges:
1. Frequent Manual Cleaning
After each filtration batch, operators needed to stop the equipment and manually clean filter cloths and related components.
Each cleaning cycle required approximately 4 hours of downtime.
2. High Consumable Consumption
The filter cloth required frequent replacement due to the characteristics of the coating material.
This increased maintenance costs and added operational workload.
3. Production Efficiency Loss
Because filtration was performed in batches, the production line experienced repeated interruptions.
The customer estimated that filtration-related downtime reduced overall production capacity by approximately 15%.
YUBO Filtration System Upgrade

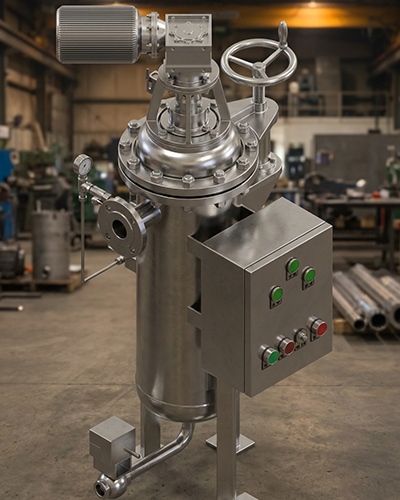

Based on the characteristics of the coating material, YUBO supplied a YGDF-D250 automatic self-cleaning filter to replace the previous plate and frame filtration system.
The upgrade included:
1. Customized Filtration Components
The system was equipped with a 316L stainless steel filter screen to provide corrosion resistance for chemical processing conditions.
The filtration opening size was customized according to the particle characteristics to balance filtration accuracy and flow capacity.
2. Automatic Cleaning Operation
The filter integrated a PLC control system.
During operation, the internal scraper automatically removed accumulated filter cake from the screen surface and discharged solids through the drain valve.
This enabled continuous operation without manual filter cloth replacement.
3. Continuous Online Filtration
Unlike the previous batch filtration process, the YUBO self-cleaning filtration system allowed the customer to maintain continuous production operation.
The filtration, cleaning and discharge process could be completed automatically within the equipment.
Equipment Supplied
Equipment: Automatic Self-Cleaning Filter
Model: YGDF-D250
Industry: Chemical Processing
Application: Coating Intermediate Filtration
Material: 316L Stainless Steel Filter Screen
Control System: PLC Automatic Control
Project Results
After six months of continuous operation, the upgraded filtration system achieved significant improvements.
1. Extended Filter Screen Service Life
The 316L stainless steel filter screen operated continuously for more than six months without clogging or damage.
The service life increased from approximately three days to more than six months.
2. Reduced Maintenance Requirements
The replacement frequency of filtration consumables was reduced by approximately 90%.
The automated cleaning process also reduced manual intervention requirements.
3. Improved Production Efficiency
By eliminating frequent shutdowns for cleaning, the production line achieved more stable continuous filtration.
Overall production capacity increased by approximately 20%, while production scheduling became more predictable.
YUBO Filtration Solution
YUBO provides customized industrial filtration equipment for chemical processing, water treatment, food processing and other industries.
Our filtration solutions are designed according to actual process requirements, including:
• Material characteristics
• Solid concentration
• Filtration accuracy
• Continuous operation requirements
For challenging applications involving high viscosity liquids, abrasive particles or frequent maintenance issues, YUBO develops filtration systems focused on stable operation and long-term performance.
