Engineers in wastewater treatment, chemical processing, food production, and mining often face the same question: When system pressure increases, which filtration medium delivers more stable performance, wedge wire or wire mesh?
✔ Wedge Wire Screens

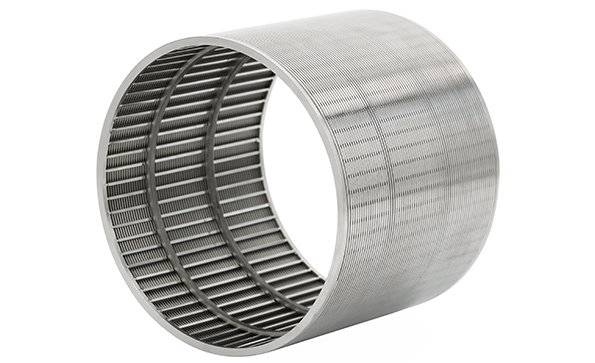

Wedge wire is manufactured by welding V-shaped stainless steel profiles onto support rods.
This creates a rigid, load-bearing structure with:
• High collapse strength
• Minimal deformation during pressure spikes
• Stable slot geometry even under continuous load
Typical performance ranges:
| Parameter | Wedge Wire |
|---|---|
| Collapse strength | 150–400 psi depending on profile and rods |
| Deflection under pressure | <1% on most industrial panels |
| Pressure fatigue resistance | High |
✔ Wire Mesh Screens
Wire mesh uses woven metal wires, with strength depending on weave type and wire diameter.
Under pressure, the structure may deform, leading to:
• Stretching or warping of the mesh
• Loss of micron accuracy
• Higher risk of tearing in high-solids applications
Typical performance ranges:
| Parameter | Wire Mesh |
|---|---|
| Collapse strength | 25–150 psi depending on weave |
| Deflection under pressure | Up to 10% |
| Pressure fatigue resistance | Moderate to low |
Wedge wire maintains its shape under pressure; wire mesh often cannot.
✔ Wedge Wire
The V-profile acts as a self-cleaning structure. Solids slide off instead of lodging in the slot.
This reduces:
• pressure loss
• backwashing frequency
• manual cleaning time
✔ Wire Mesh
Wire mesh traps solids inside the weave. Over time:
• pressure drop increases
• screens require frequent cleaning
• clogging reduces flow capacity
Wedge wire stays cleaner longer and holds up during clogging events.
Pressure and abrasion are the two main causes of screen failure.
Wedge wire screens typically last 3–10 times longer than wire mesh in high-pressure or abrasive environments.
| Environment | Wedge Wire Lifespan | Wire Mesh Lifespan |
|---|---|---|
| High pressure (100+ psi) | 5–10 years | 6–18 months |
| Abrasive slurry | 3–6 years | 3–12 months |
| Municipal wastewater | 5–15 years | 1–3 years |
Wedge wire offers superior structural integrity and lifecycle cost savings.
The wedge profile produces lower turbulence and lower pressure loss compared to a woven cloth.
✔ Wedge Wire Advantages
• Consistent slot openings under load
• Predictable hydraulic performance
• Lower pumping energy
✔ Wire Mesh Limitations
• Micron openings compress under pressure
• Reduced flow rate
• Unpredictable ΔP across the screen
Wedge wire delivers stable flow, especially in systems with variable pressures.
✔ Choose Wedge Wire When:
• Pressure exceeds 50–100 psi
• Solids loading is high
• Slot consistency is critical
• Long service life matters
• Equipment must withstand pressure cycling
✔ Choose Wire Mesh When:
• Costs must be minimized
• Pressure is consistently low
• Short-term or temporary filtration is acceptable
• Fine micron levels (<50 µm) are required
For high-pressure systems, wedge wire consistently outperforms wire mesh in strength, stability, cleaning performance, and lifespan.
If your application involves fluctuating pressure, abrasive solids, or strict flow requirements, wedge wire is the safer, more cost-effective choice.
FAQ
1. Why does wedge wire handle pressure better than wire mesh?
Wedge wire is built with welded support rods, giving it significantly higher structural strength than woven mesh.
2. Does wire mesh deform under high pressure?
Yes. The woven pattern can stretch or warp, especially above 75–100 psi.
3. Which lasts longer in wastewater treatment?
Wedge wire typically lasts 5–10 years, while mesh may require annual replacement.
4. Is wedge wire more expensive?
Upfront, yes. Over its lifespan, wedge wire is more cost-effective due to fewer replacements and lower maintenance.
5. Can wedge wire achieve fine filtration?
Yes, though mesh is still preferred for ultra-fine (<50 µm) requirements.
