    The horizontal self-cleaning filter is an industrial automatic filter that provides a variety of comprehensive applications, especially for ships and offshore platforms.

    The horizontal automatic suction screen filter can have a different number of filter elements in each filter to provide a larger filter area.

    Products Details

    Horizontal Self-cleaning Filter Housing Brief Description

    A horizontal self-cleaning filter is also called a horizontal automatic suction screen filter or a horizontal automatic filter.

    The horizontal self-cleaning filter housing is an industrial automatic filter that provides a variety of comprehensive applications.

    The design of the pressure in the main part of the filter is based on the standard design of chemical pipe filters and steel pressure vessels.  The equipment's main body is carbon steel, stainless steel, duplex steel, and other materials. We can also provide you with titanium, pure nickel, and other special materials.

    Horizontal Self-cleaning Filter Manufacturer in China

    Horizontal Self-cleaning Filter Specification Parameters








    Electric or pneumatic

    Filter Standard

    GB150, HG/T21637

    Filter element material

    304.316, Hastelloy

    Valve material

    CS, 304, 316, Hastelloy

    Sealing material

    NBR, EPDM, rubber

    Blowdown valve size


    Cleaning control

    Pressure difference and time

    Backwash medium

    Filtered liquid

    Small washing volume (L)


    Cleaning time (s)

    30-60(Could be set)

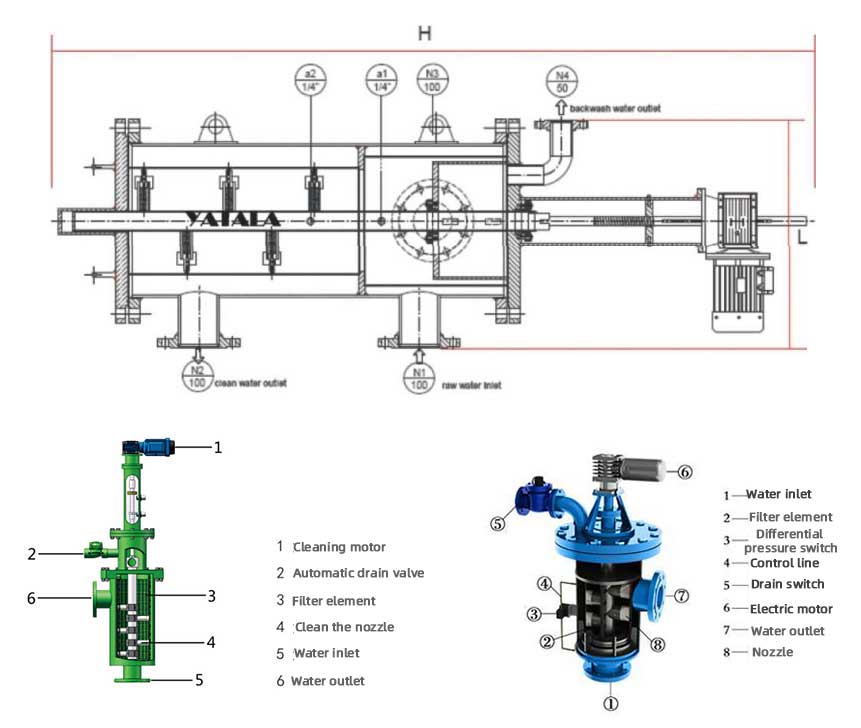

    Schematic diagram of structure

    horizontal automatic suction screen filter - self cleaning filter

    Advantages of Horizontal Self-cleaning Filter

    1. The horizontal self-cleaning filter adopts a multi-layer mesh filter element structure, which can maximize the effective filtering area.

    2. High-efficiency backwash technology, combined with laser welding technology, the filter is especially suitable for the sea and ships.

    3. A set of spare filter elements is added in addition to satisfying the flow rate of normal design. When cleaning is required, the spare filter element is started, so it will not affect the pipe resistance.

    4. The cleaning assembly is in the form of sucking up and down, which maximizes the cleaning of impurities in the shortest time.

    5. Clean the gasket at the rotating shaft and filter element faceplate, and have an automatic adjustment function according to the wear, to minimize the side leakage.

    6. Horizontal automatic filters generally take up less space than other filtration systems and can operate at higher flow rates.

    Application of Horizontal Self-cleaning Filter

    ● Water and sewage

    ● Pulp and Paper

    ● Chemicals

    ● Petrochemicals

    ● Steel

    ● Nonferrous metal

    ● Plastic extrusion

    ● Machine coolant filtration

    ● Construction sector

    Contact us

    For advice and custom self-cleaning filter housings or filtration solutions please contact us directly for a quote.

    WhatsApp:86 13653285589, Email: sales@yubofilter.com

    Our team of filter experts is available 24/7.

    We have specialized in industrial filtration for more than 10 years.
