Stainless Steel Pleated Filter Cartridge

Details of Stainless Steel Pleated Filter Cartridge:

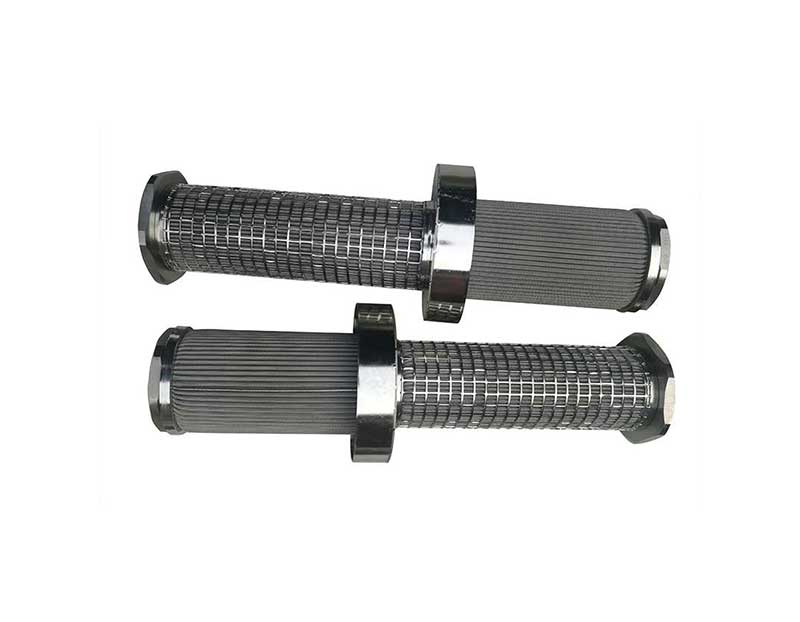

Stainless Steel Pleated Filter Cartridge is made of stainless steel wire mesh, or metal fiber felt, which is sintered at each wire contact point to produce a strong surface-sieving porous filter cylinder. Moreover, the filter element is pleated design that further provides large filter area, good dirt holding capacity.
     Unlike unsintered mesh, pleated sintered mesh filter enables the use of finer wires to produce more pores per unit area for higher contaminant loading capacity. On the other hand, pleated sintered filter cartridge is more preferred to replace the PP filter cartridge with its back washing and reusability advantage
      Double open-ended or single open-ended is available as per customers' need, threaded end is often equipped with gasket, like o-ring, to reduce the friction of the corrugated filter.

Application of Stainless Steel Pleated Filter Cartridge

Pleated filter cylinder is widely used for filtration of gas-liquid, high molecular polymer, hydraulic oil, in the following industries:
Mining industry.
Textile industry.
Food industry.
Chemical and pharmacy industry.
Automotive industry.
Insulation industry.

Feature for Stainless Steel Pleated Filter Cartridge

(1) Strength: As fourth and fifth layers do support, with high mechanical strength and compressive strength.
(2) Easy to clean: As a result of surface of the filter material, having means for cleaning characteristics, especially suitable for backwashing.
(3) Easy processing: Suitable for cutting, bending, stamping, drawing, welding and other processes.
(4) High temperature: 480 can withstand high temperatures.
(5) Corrosion resistance: As a result of SUS316L, 304 materials, the corrosion resistance.
(6) Filtration: Filtration range of 1-200, has a reliable filter performance.
(7) Stability: Because there are two layers to do to protect the screen, plus solid melting diffusion sintering process which make filters is not easily to deform.
