Can Cartridge Filter Housings Be Customized?
Yes. You can customize cartridge filter housings when a standard configuration doesn't match your process, piping system, installation space, or operating requirements.
Common customizations may include housing material, cartridge quantity and length, connections, inlet and outlet dimensions, housing size, pressure and temperature requirements, seals, and selected accessories.
However, customization is not always necessary. If a standard housing already meets the filtration, installation, and operating requirements, it may be the more practical option.
In-depth Reading: Industrial Cartridge Filter Housing Guide
A custom housing is usually considered when a standard model cannot be installed or operated as required.
1. Replacing Existing Equipment
Replacement is one of the most common reasons for customization.
An existing filter housing may have fixed pipe connections, a specific inlet/outlet position, limited installation space, or a particular cartridge specification. A standard replacement may not match these conditions directly.
In this case, a custom cartridge filter housing can be designed around the existing installation. Customers can provide the dimensions, connection details, photos, drawings, or nameplate information of the existing equipment for evaluation.
This approach can help reduce unnecessary changes to existing piping and supporting structures.
2. Limited Installation Space
A standard housing may meet the filtration requirement but not fit the available space.
For example, the installation area may have height restrictions, limited clearance around the housing, or fixed equipment nearby. Housing dimensions, connection positions, and selected structural features can be adjusted to suit the actual installation.
3. Non-Standard Process Requirements
Some applications require a configuration outside common standard models.
This may involve a particular cartridge quantity or length, higher operating pressure or temperature, a different housing material, or specific seal requirements. In such cases, customization allows the housing to be matched to the actual process rather than forcing the process to fit a standard product.
For broader selection factors, see our How to Choose a Cartridge Filter Housing.
4. Specific Connections or Accessories
A project may also require a particular flange size, inlet/outlet arrangement, vent or drain, support legs, lifting features, or other selected components.
These details can be important when the housing must integrate with existing process equipment.

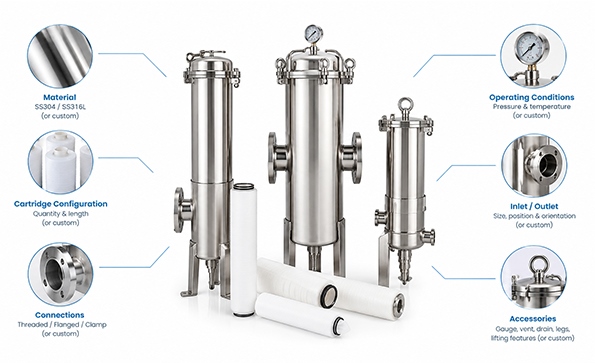

Depending on the application, a cartridge filter housing may be customized in several areas:
| Item | Possible customization |
| Housing material | SS304, SS316L or project-specific material |
| Cartridge configuration | Quantity, length and compatible element |
| Connections | Threaded, flanged or clamp |
| Inlet/outlet | Size, position and orientation |
| Housing dimensions | Diameter, height and installation dimensions |
| Operating conditions | Pressure and temperature requirements |
| Seals | Material selected for process compatibility |
| Accessories | Gauge, vent, drain, legs, lifting features |
The required customization depends on the project.
For a replacement housing, dimensional and connection compatibility may be the priority. For a new filtration system, cartridge configuration, flow requirements, and operating conditions may have greater influence. Flow requirements should also be considered early because they can affect cartridge quantity and housing configuration. See How Flow Rate Affects Cartridge Filter Housing Selection.
The more complete the project information, the easier it is for the manufacturer to evaluate a suitable configuration.
Useful information includes:
• Process fluid
• Required flow rate
• Filtration rating
• Cartridge type and length
• Cartridge quantity
• Operating pressure
• Operating temperature
• Existing connection type and size
• Available installation space
• Housing material and seal requirements
For replacement projects, existing housing dimensions, connection details, equipment photos, drawings, or nameplate information can be especially useful.
If the housing will be used with stainless steel construction, material selection should also match the process environment. See SS304 vs SS316L Cartridge Filter Housing.
| Standard housing | Custom housing |
| Standard dimensions and connections | Project-specific dimensions and connections |
| Common cartridge configurations | Specific cartridge configuration |
| Suitable for common applications | Useful for non-standard or replacement projects |
| Usually simpler to specify | Requires design confirmation |
A standard housing may be the better choice when it already satisfies the flow, cartridge configuration, operating conditions, and installation requirements.
Customization becomes valuable when the existing system, process, or site conditions cannot be accommodated by a standard model.
For applications using different cartridge quantities, see Single vs Multi Cartridge Filter Housing
YUBO supplies stainless steel cartridge filter housings for industrial filtration and supports customized configurations for project-specific requirements.
Customization can cover housing material, cartridge quantity and length, connections, inlet/outlet arrangement, dimensions, operating conditions, seals, and selected accessories.
For replacement projects, customers can provide existing housing dimensions, connection details, drawings, photos, and process information. YUBO can then review the requirements and determine whether a standard configuration is suitable or a custom housing is more appropriate.
Send us your existing housing details or process requirements for a configuration review.
1. Can an existing cartridge be reused in a custom housing?
It may be possible if the cartridge dimensions, sealing method, end connection, operating conditions, and internal support arrangement are compatible with the new housing. The existing cartridge specification should therefore be confirmed before the housing is designed.
2. What if I do not have a drawing for the existing housing?
A drawing is helpful but not always essential for an initial evaluation. Photos, nameplate information, housing dimensions, connection measurements, cartridge specifications, and installation-space measurements can provide useful information for reviewing a replacement or custom configuration.
3. Can only one part of a cartridge filter housing be customized?
Yes. Customization does not necessarily mean redesigning the entire housing. Depending on the project, only certain details—such as the inlet/outlet arrangement, connection size, dimensions, cartridge configuration, or selected accessories—may need to be changed.
