Selecting the right cartridge filter housing is essential for achieving reliable filtration performance and reducing maintenance costs.
Many users focus only on filtration accuracy, but the housing design also affects flow capacity, cartridge replacement frequency, material compatibility, and long-term operation.
As a cartridge filter housing manufacturer, YUBO recommends selecting a housing based on actual application requirements, including fluid characteristics, operating conditions, and filtration goals.
For a complete guide, visit our Industrial Cartridge Filter Housing Guide.
Before selecting a cartridge filter housing, consider the following factors:
• What type of fluid needs filtration?
• What filtration rating is required?
• What is the required flow capacity?
• What are the operating pressure and temperature?
• What material is compatible with the fluid?
• How often will cartridges need replacement?
Understanding these conditions helps determine the correct housing configuration.
Industrial cartridge filter housings mainly include three types.
Single cartridge housings are suitable for low-flow applications, pilot systems, laboratories, and small production lines.
Key advantages:
• Compact design
• Easy maintenance
• Lower investment cost
They are commonly used where filtration capacity requirements are relatively small.

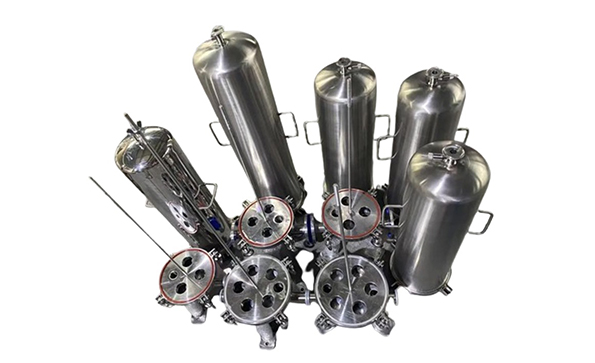

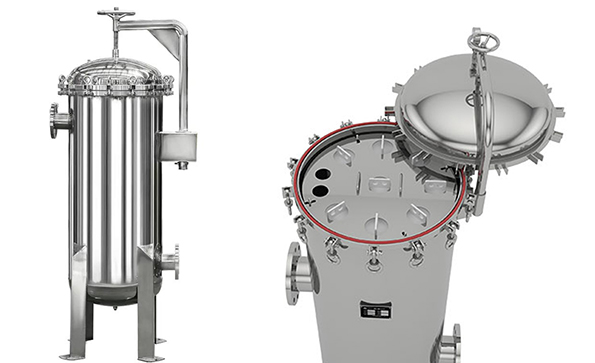

Multi cartridge housings contain multiple filter cartridges inside one vessel to provide larger filtration areas and higher flow capacity.
They are commonly used for:
• Industrial water treatment
• Continuous production
• Chemical processing
• Process filtration systems
This configuration is suitable when higher filtration capacity and longer service intervals are required.
Security filter housings are usually installed as final-stage filtration equipment to protect downstream systems.
Typical applications include:
• RO membrane protection
• Pump protection
• Process equipment protection
They help remove remaining particles before fluids enter sensitive equipment.
Cartridge quantity affects filtration capacity and maintenance frequency.
Common configurations include:
1 cartridge
3 cartridges
5 cartridges
7 cartridges
21 cartridges or customized designs
Selection depends on:
Flow requirement
Contamination level
Operating conditions
Available installation space
Common cartridge lengths include:
10 inch
20 inch
30 inch
40 inch
Longer cartridges provide more filtration area, while shorter cartridges are often preferred for compact systems.
Material selection is critical for ensuring corrosion resistance and service life.
• SS304 Cartridge Filter Housing
Suitable for:
General water filtration
Non-corrosive liquids
Standard industrial applications
• SS316L Cartridge Filter Housing
Suitable for:
Chemical applications
Food and beverage processing
More corrosive environments
• Duplex Stainless Steel Housing
Suitable for:
Seawater filtration
Chloride environments
Applications requiring higher corrosion resistance
The material should always match the chemical properties of the filtered medium.
The connection type should match the pipeline system.
• Threaded Connection
Suitable for small systems and compact installations.
• Flanged Connection
Suitable for industrial pipelines requiring reliable connections and easier maintenance.
• Tri-Clamp Connection
Suitable for sanitary applications such as food, beverage, and pharmaceutical processing.
Additional design options include:
• High flow cartridge compatibility
• Sanitary design
• Customized dimensions
• Special materials
Before purchasing a housing, confirm:
• Operating pressure
• Maximum temperature
• Seal material compatibility
• Compatible cartridge specifications
The housing and cartridge element should work together as a complete filtration system.
Important matching factors include:
• Cartridge length
• Cartridge diameter
• End connection
• Filtration rating
• Filter media material
Standard housings can meet many industrial applications, but customized solutions may be required for special conditions.
Customization options include:
• Special flange sizes
• Non-standard connections
• Special materials
• Customized dimensions
• Specific operating requirements
YUBO provides customized cartridge filter housing solutions based on different industrial filtration requirements.
| Selection Factor | Confirm |
|---|---|
| Fluid type | ✓ |
| Flow capacity | ✓ |
| Filtration rating | ✓ |
| Pressure | ✓ |
| Temperature | ✓ |
| Housing material | ✓ |
| Connection type | ✓ |
| Cartridge length | ✓ |
| Cartridge quantity | ✓ |
1. How do I choose a cartridge filter housing?
Select a housing based on fluid characteristics, flow requirements, operating conditions, material compatibility, cartridge quantity, and installation requirements.
2. Should I choose a single or multi cartridge filter housing?
Single cartridge housings are suitable for smaller applications, while multi cartridge housings are designed for higher flow industrial processes.
3. What material is best for cartridge filter housing?
SS304 is suitable for general applications, while SS316L and Duplex stainless steel are commonly selected for more demanding environments.
4. Can cartridge filter housings be customized?
Yes. Cartridge filter housings can be customized according to application requirements, including material, connection, dimensions, and configuration.
Choosing the correct cartridge filter housing requires evaluating the complete filtration process rather than only the filter rating. By considering housing type, cartridge configuration, material, connection, and operating conditions, users can select a reliable filtration solution.
YUBO manufactures single cartridge filter housings, multi cartridge filter housings, security filter housings, and customized industrial filtration solutions for various applications.
