316L stainless steel material features corrosion resistance, mechanical strength, and cleanliness, making it ideal for liquid, gas, and slurry filtration under harsh conditions.
The L in 316L stainless steel stands for low carbon content, typically below 0.03%, which prevents carbide precipitation during welding and heat treatment. This small difference gives 316L a significant advantage over standard 316 or 304 grades, especially in environments exposed to chlorides, acids, or high temperatures.
Chemically, 316L contains 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, providing superior resistance to pitting, crevice corrosion, and chemical attack. This is why 316L is commonly used in food processing, pharmaceutical, chemical, and marine filtration systems.
316L stainless steel excels in conditions where other alloys degrade. In saltwater, acidic wastewater, or chlorine-rich solutions, it maintains integrity where carbon steel or even 304 stainless would corrode.
For instance, in marine intake filters or chemical processing lines, the molybdenum content in 316L forms a passive oxide film that resists chloride attack — ensuring longer service life and reduced downtime.
Corrosion rate: < 0.002 mm/year in seawater at 25°C
Temperature tolerance: Up to 800°C for intermittent exposure
This durability translates directly into lower maintenance costs and greater operational uptime.

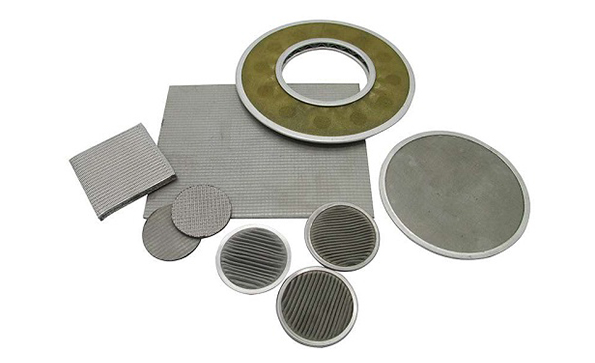

Beyond corrosion resistance, 316L's mechanical stability supports fine, precise filtration structures. It can be woven, sintered, or welded into wire mesh filters, wedge wire screens, or porous sintered elements that maintain their shape under pressure differentials.
Typical performance metrics include:
Tensile strength: 485–620 MPa
Yield strength: 170–240 MPa
Elongation: ~40% (providing ductility and resilience)
This makes 316L the preferred choice for high-pressure filtration systems in oil & gas, pharmaceutical, and industrial water treatment plants.
4. Cleanability and Hygiene Advantages
In industries like pharmaceuticals, food & beverage, and biotechnology, cleanliness is critical. 316L stainless steel has a smooth, non-reactive surface that prevents bacterial growth and cross-contamination. It withstands repeated CIP (clean-in-place) and SIP (steam-in-place) cycles without surface degradation.
This hygienic property aligns 316L with FDA, EU, and 3-A sanitary standards, ensuring compliance with international safety regulations.
5. Cost Efficiency and Life-Cycle Value
While 316L stainless steel filters may cost more upfront than polymer or mild-steel alternatives, their lifespan and performance stability make them more economical over time.
A properly maintained 316L filter element can last 5–10 years, significantly outlasting disposable media. Reduced maintenance, fewer replacements, and enhanced reliability contribute to a lower total cost of ownership and a smaller environmental footprint.
Water & wastewater treatment: Desalination, Pre-Filtration, and Reuse Systems.
Chemical processing: Corrosive fluid handling and reactor filtration.
Food & beverage: Clarification and sterilization processes.
Pharmaceuticals: Sterile filtration and process gas treatment.
Oil & gas: Sand control, produced water treatment, and catalyst protection.
From wedge wire screens in refineries to sintered metal filters in biotech labs, 316L ensures dependable, safe, and efficient operation.
Stainless steel 316L remains the gold standard for industrial filtration because it delivers unmatched corrosion resistance, mechanical integrity, and hygienic performance under the most demanding conditions. For industries seeking long-term reliability and compliance with global safety standards, 316L is not just a material choice — it's an investment in quality, efficiency, and sustainability.
1. What makes Stainless Steel 316L different from 304 in filtration systems?
While both are corrosion-resistant, 316L contains molybdenum, which significantly enhances resistance to pitting and crevice corrosion in chloride and saline environments—making it ideal for chemical, marine, and food-grade filtration systems.
2. How does 316L stainless steel improve filtration lifespan?
316L's low carbon content reduces carbide precipitation during welding, preventing structural degradation and ensuring longer operational performance in high-pressure and high-temperature filtration units.
3. In which industries is 316L filtration most commonly used?
It's widely used in pharmaceuticals, water treatment, petrochemicals, and food processing—industries that demand hygienic, corrosion-resistant, and easily cleanable filtration components.
4. Are 316L filters compatible with aggressive chemicals?
Yes. 316L stainless steel maintains mechanical integrity when exposed to acids, alkalis, and solvents, making it suitable for critical filtration in chemical and desalination processes.
5. How does 316L stainless steel support sustainability goals?
316L is fully recyclable and reduces replacement frequency due to its durability, supporting sustainability and lowering operational waste across industries.
6. What types of filters commonly use 316L material?
Wedge wire screens, sintered mesh elements, and cartridge filters are often manufactured with 316L to withstand harsh environments and meet strict industry standards.
